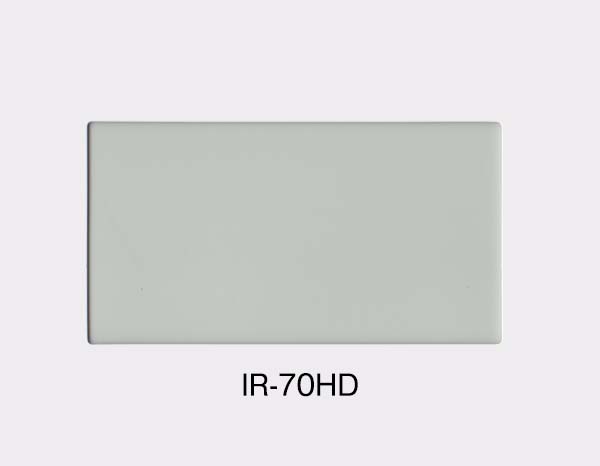

WINCOS Standard Series IR-70HD

WINCOS Standard Series IR-70HD
Manufacturer WINCOS
Specifications 1070mm×20m
Visible light Transmittance(%) 76
Reflectance(%) 15
UV reduction Transmittance(%) <1
Solar radiation Transmittance(%) 55
Reflectance(%) 25
Absorptance(%) 20
Shading coefficient 0.70
Heat transmission coefficient(W/㎡K) 5.5
Near infrared light blocking rate(%) 74
Order unit 1 roll/ by the Meter

Order Here

Product name [ordering code] Regular price Member price Qty
WINCOS Standard Series IR-70HD 1,070mm x 20m
[51677---]

Login to view price or purchase

WINCOS Standard Series IR-70HD by the Meter
[51677-1-]

Login to view price or purchase

Product Description

* When purchasing by the meter, please be sure to specify the length that you desire.
* We will get back to you about the price.
* When you click "Add to shopping cart," \0 will be displayed as a temporary price.



This highly reflective metallic film is laminated with precious metals in a special process to achieve a high level of heat blocking effect while retaining transmittance of light. It combines performance with beauty.

HM-60HD and HM-80HD, two popular products that have since been discontinued, were integrated to create this new film. It boasts a unique gold-like air of luxury and a reflective quality that changes depending on the lighting conditions while maintaining transparency, which is not possible with competing metallic films. With the previous products, many felt that either the transmittance was too high and the reflectivity too low, or the reflectivity too high and the transmittance too low. This film occupies a middle ground between those points, balancing transparency with a luxurious reflective quality to meet a wider variety of needs.
In addition, this product uses a new adhesive that not only reduces distortion and ensures higher visibility, but also conforms exceptionally well to three-dimensional curved surfaces, despite being a metallic film.

* Compliant with JIS S 3107 ("Adhesive Film for Automotive Windows”)
