Elcometer CFNFBI1 Dual Type / CFNFSI1 Dual Type
| Product name [ordering code] | Regular price | Member price | Qty |
|---|---|---|---|
|
Elcometer 456 (B Type) A456CFNFBI1 Dual Type [03500-01] |
|||
|
Elcometer 456 (S Type) A456CFNFSI1 Dual Type [03500-02] |
|||

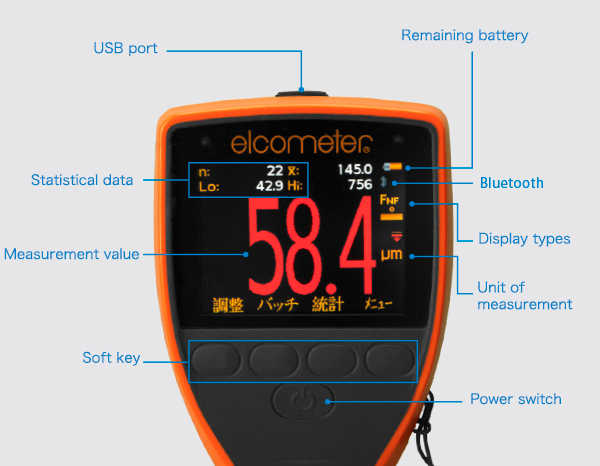

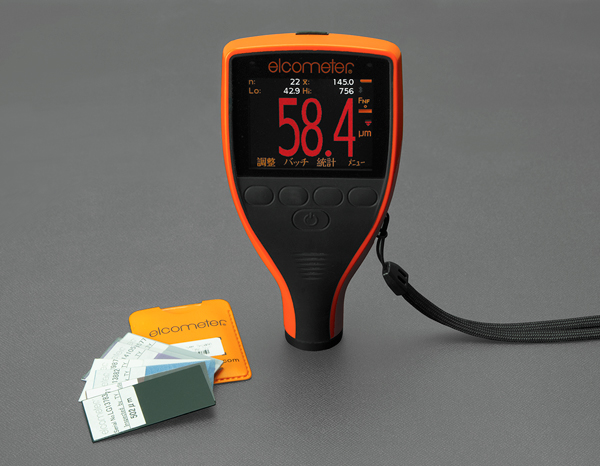

The Elcometer 456 is a new high-performance paint thickness gauge with high levels of speed, reliability, and precision.Our lineup includes the standard model B-type and the multi-function S-type. Both models can measure magnetic and non-magnetic metals; are equipped with large control panels which are easy to see and manipulate; and have sealed one-piece bodies which are highly reliable in the field due to their excellent durability and shock resistance. The S-type has data memory functions and can output to USB or Bluetooth, making it easy to use.

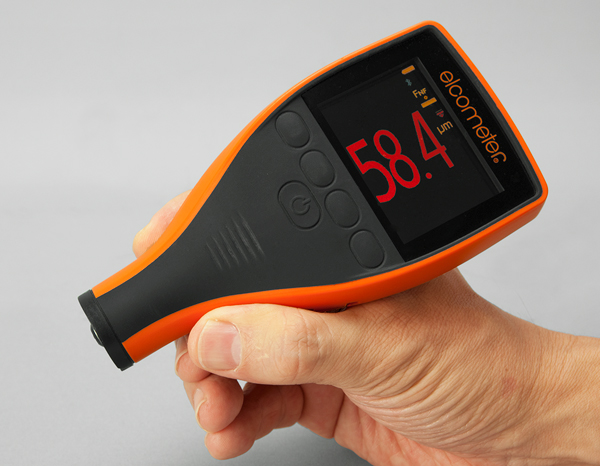

The integrated probe with wide contact point allows for stable measurements on flat and curved surfaces alike.
| Basic ModelA456CFNFBI1 | Standard ModelA456CFNFSI1 | |
|---|---|---|
| Object of measurement | Non-magnetic coating on a magnetic metal and insulating coating on a non-magnetic metal | |
| Measurement range | 0-1500μm (0-60mils) | |
| Measurement precision | ±1-3% or ±2.5μm | |
| Resolution | < 0-100μm: 0.1μm, >100μm:1μm | |
| Size (mm) | 141×73×37 | |
| Weight (g) | 156 | |
| Computer data management | No | Yes |
