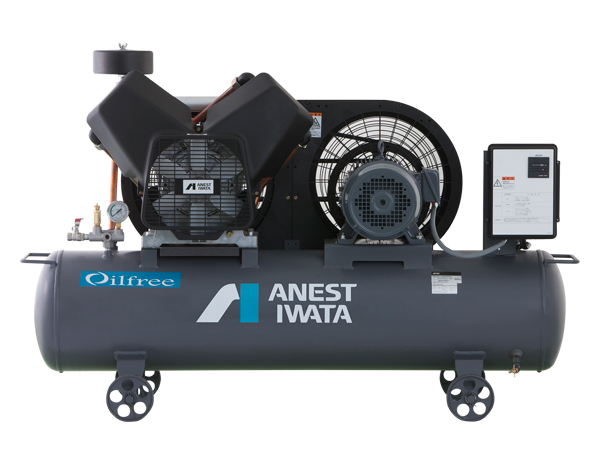

ANEST IWATA Oil-Free Tank-Mounted Type TFP37CF-10M5

ANEST IWATA Oil-Free Tank-Mounted Type TFP37CF-10M5
Electric motor rated output kW｛PS｝ 3.7｛5｝
Control pressure MPa（kgf/cm2） 0.8-1.0
Output air volume L/min 370
Air tank capacity L 95
Air outtake B

Rc3/8×1
Ball valve female screw
External dimensions (W x D x H)mm 1400×430×940
Mass kg 115
Noise level (1.5m in front) dB(A) 75
Operating control method Pressure switch
Voltage V Three-phase 200V
Learn more about this product.

Order Here

Product name [ordering code] Regular price Member price Qty
ANEST IWATA Oil-Free Tank-Mounted Type TFP37CF-10M5
[03394---]

Login to view price or purchase

Product Description

This standard product operates on 200V power. This oil-free, tank-mounted model supplies clean air. You can choose the right volume to fit your work needs. For normal work with 1 tool, the TFP-22C-10 will suffice. For more work capacity, the 37C or higher is recommended.
