| Near infrared lamp （ruby lamp） |
Near infrared lamp （clear lamp） |
Mid-infrared lamp | Carbon fiber lamp | |
| Format | HUNS-63-D | HUNC-63-D | HUNM-63-D | HUNK-63-D |
| Lamp | 1.2kW×6 | 1.2kW×6 | 1.0kW×6 | 1.0kW×6 |
| Capacitance | 7.2kW | 7,2kW | 6.0kW | 6.0kW |
| Power source, plug | Three-phase 200V, 20A, 3P, with earth (10m cord) | |||
| Irradiation area | 1383（W）×790（H） | |||

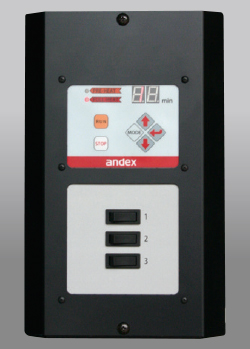

| Timer | Auto timer change of predrying 99min. and actual drying 99 min. | |||
| Product name [ordering code] | Regular price | Member price | Qty |
|---|---|---|---|
|

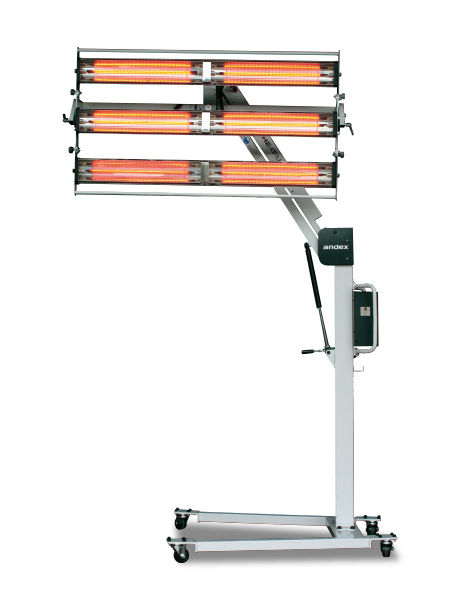

HEAT-UP＋6-bulb type HUNS-63-D [03146-34] |
|||
|
HEAT-UP＋6-bulb type HUNC-63-D [03146-35] |
|||
|
HEAT-UP＋6-bulb type HUNM-63-D [03146-36] |
|||
|
HEAT-UP＋6-bulb type HUNK-63-D [03146-37] |
|||

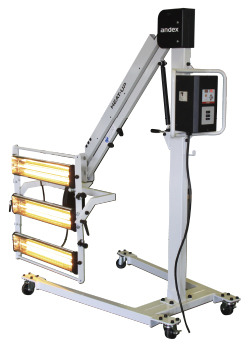

▶The heater bank height adjuster is lever operated
1-and 2-lamp types
It can be raised and lowered smoothly with one hand.
▶Durability has been increased and costs reduced.
3- and 6-lamp types
●Safety design (installed breakers, relays) to fit the properties of Japanese products
●Passed ON/OFF test of more than 15000 times
▶Can be used in any work environment with the right combination
It can be converted into 4 types of heater lamp simply by exchange lamps.
To prevent dazzling, a "red film" produces 90% clear output.
With preliminary drying timer
With slightly less penetration power than near infrared, it is easy to use. Best for drying plastic parts.
With preliminary drying timer
Starts up quickly and can dry in a short time.
With preliminary drying timer
With the closest wavelength to that absorbed by water, it is best used for drying water-based paints.
With preliminary drying timer
Smooth raising and lowering High stroke
Each bank’s angle can be adjusted to conform to the curved surfaces of a body. Placing them a set distance away from the painted surface will achieve a uniform drying.
