| Wavelength | 550m |
|---|---|
| Precision | ±2% |
| Measurement repeatability | 1% |
| Measurement range | 0 - 100% |
| Operable temperature | -18℃ to 38℃ |
| Operable humidity | 0 - 100% (no condensing) |
| Measurable glass thickness | Within 6.35mm |
| Measurement time | 4 seconds |
| Light source life | 10 years |
| Power | 3V CR2032, 2 lithium batteries |
| Size | 94mm x 45mm x 30mm |
| Weight | 90g |

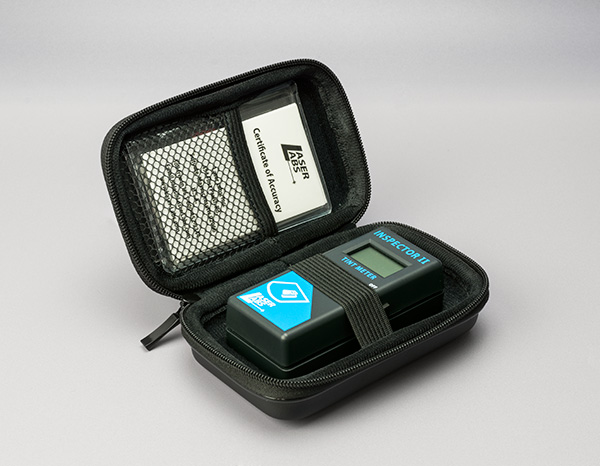

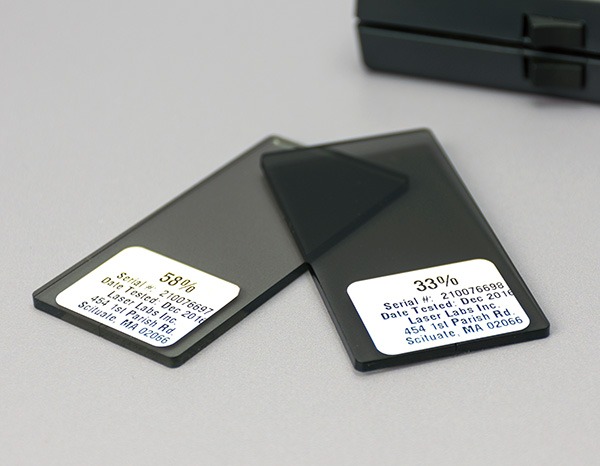

| Accessories | Special case x 1, Instruction manual x 1 2 acrylic plates for calibration |
- FE News»
- PPS News»
- Oct. 31, 2024
- [News Release R-1020] Release of "ECHELON Zen-Xero DYNAMIX”
- May. 15, 2024
- [News Release R-1019] Release of "ECHELON Ver.3.0”
- Oct. 02, 2023
- [News Release R-1018]Compound that achieves a genuine finish Full Renewal of “KATANA” Series
- Jun. 27, 2023
- [News Release] A final finishing compound that achieves a beautiful wet gloss. "KATANA DARK-SHOT" is Released.
- May. 22, 2023
- [News Release] Full renewal of buffing pad category Brand integrated into HAYABUSA
TINT METER M2000
- Improved measurement accuracy
- Reduced size and weight
- Display error codes in case of faulty operation
Smaller and lighter than M200

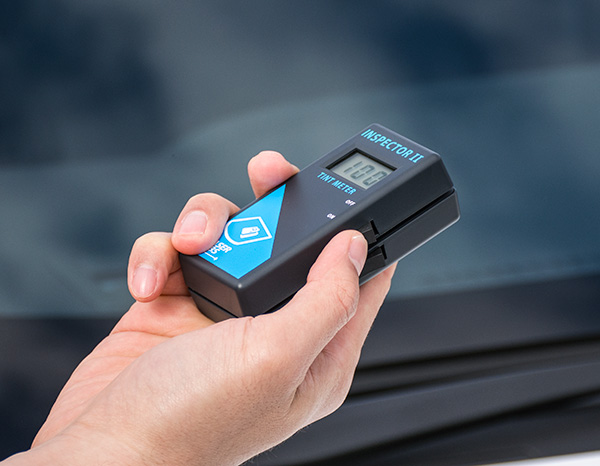

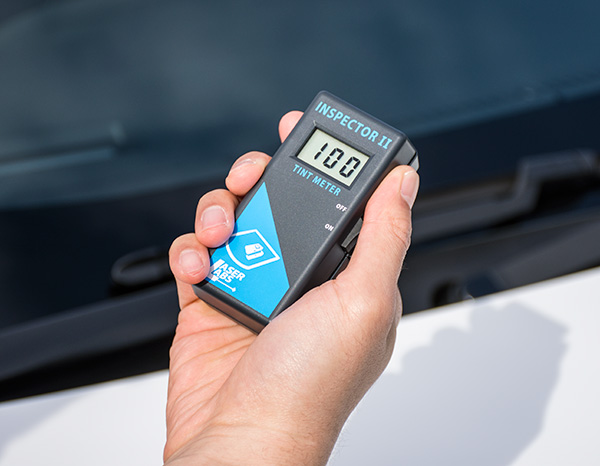

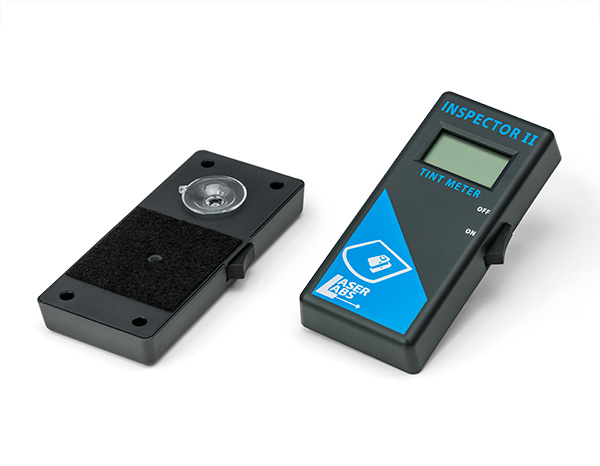

This model succeeds the M200, greatly reducing the original’s size and weight. Its two-piece design allows for measurement of glass in fixed positions, such as the windshield and rear window. It is small enough to fit in the palm of your hand, providing excellent portability. It can even measure small sheets of glass in fixed positions such as quarter glass, which was difficult with past tools.
Improved accuracy and easy troubleshooting

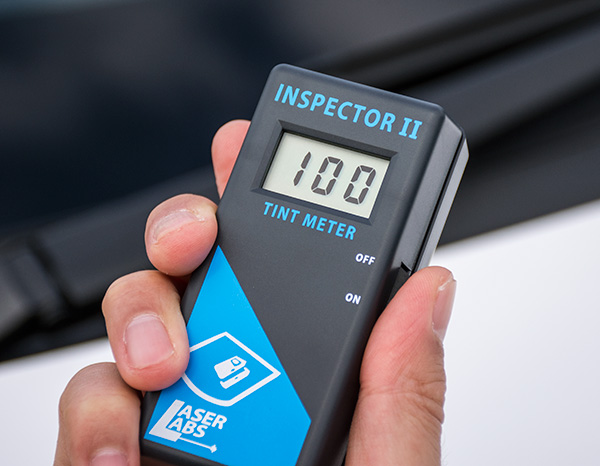

The measured value is displayed instantly with no waiting time. Even if the measurement is not successful, an error code is displayed for easy troubleshooting. The use of button batteries for the battery enhances maintainability.

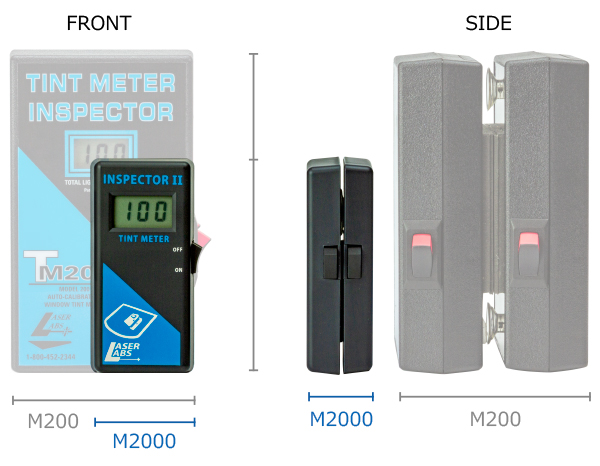

Comparison to the conventional model (M200)
| Model | TINT METER M2000 | TINT METER M200 |
|---|---|---|
| Size | 94mm×45mm×30mm | 140mm×90mm×85mm |
| Weight | 90g | 640g |
| Wavelength | 550nm | 550nm |
| Precision | ±2% | ±3% |
| Measurement repeatability | 1% | 1% |
| Measurement range | 0-100% | 0-100% |
| Operable humidity | 0-100%(no condensing) | 0-100%(no condensing) |
| Measurement time | 4 seconds | 4 seconds |
| Light source life | 10 years | 10 years |
| Power | 3V CR2032, 2 lithium batteries | 9V Alkaline battery x 2 |
1.
Switch the device on and calibrate with the two pieces aligned and nothing in between.
Switch the device on and calibrate with the two pieces aligned and nothing in between.
2.

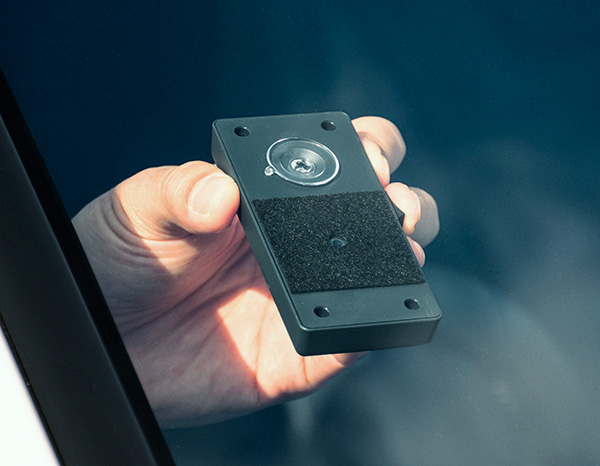

With the power on, separate the two sides and attach the lamp side to the glass to be measured.
With the power on, separate the two sides and attach the lamp side to the glass to be measured.
3.

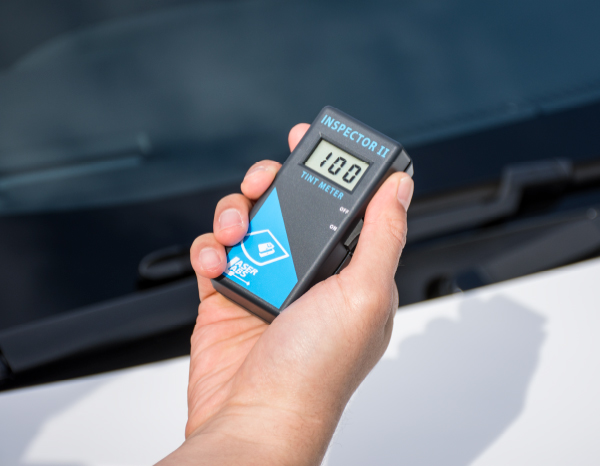

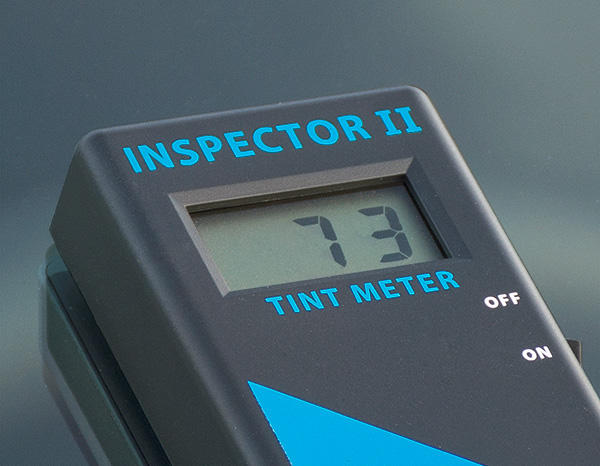

Align the display side from the opposite side of the glass. When the sensors line up, magnets will hold it in position. If the sides are positioned correctly, the measurement will be displayed instantly.
Align the display side from the opposite side of the glass. When the sensors line up, magnets will hold it in position. If the sides are positioned correctly, the measurement will be displayed instantly.
