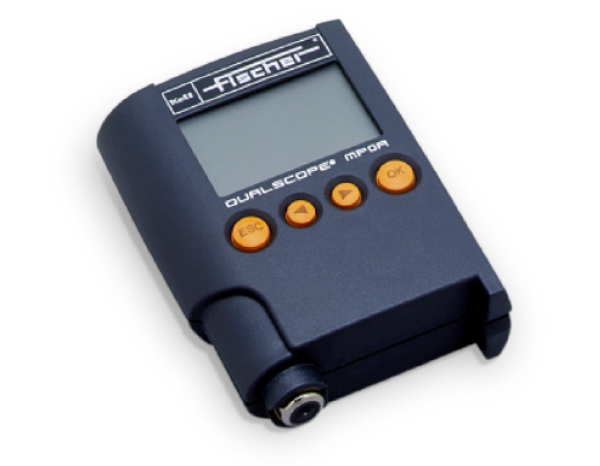

Kett Dual Type Coating Thickness Tester Dual Scope MPOR
The Dual Scope MPOR is a dual-type microminiature paint thickness gauge. In addition to the automatic material detection function which automatically determines the foundation metal, it is also ergonomically designed with two backlit LCDs on the front and top, so that the measurement values can easily be read from any position.
| Kett Dual Type Paint Thickness Gauge Dual Scope MPOR | |
|---|---|
| Measurement method | Electromagnetic induction type/over current type both used |
| Object of measurement | Non-magnetic coating on a magnetic metal and insulating coating on a non-magnetic metal |
| Measurement range | 0-2000(μm) |
| Measurement precision | 0-50μm: within ±1μm 50-100μm: within ±2% 1000-2000μm: within ±3% |
| Resolution | < 0-100μm : 0.1μm, > 100μm : 1.0μm |
| Probe | 1contact point constant pressure type |
| Size (mm) | W64×D30×H85 |
| Weight (g) | 60 |
| Power (V) | 1.5V batteries (AA alkaline) x2 |
