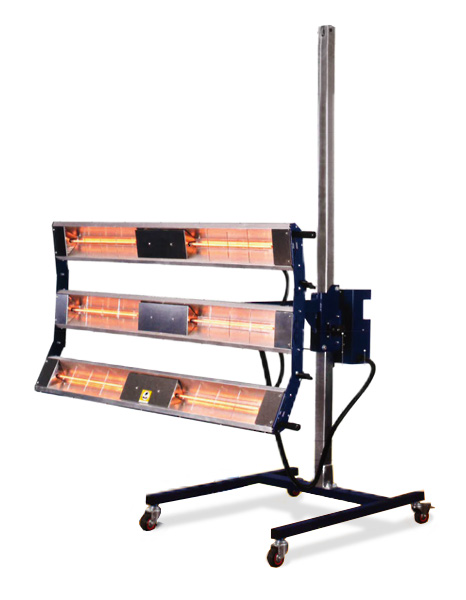

| Model | UC603 |
| Heater types | Sintered carbon block |
| Rated power | Three-phase, 200V 20A |
| Power consumption（kW） | 5.4 |

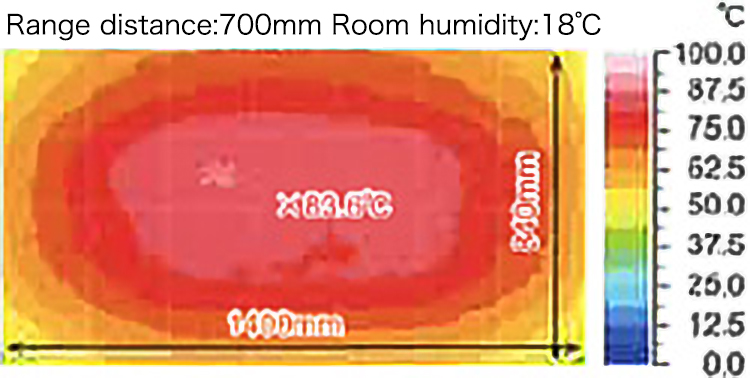

| Irradiation area（mm） | 1,320×770 |
| Dimensions（Height×Width×Depth）（mm） | 2,267×1,320×1,270 |
| Power code | 10m |
| Plug | 4P 20A |

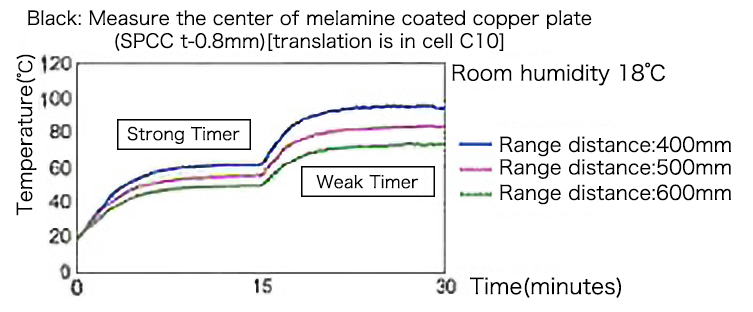

| Timer | Max. 99min 55sec (high / low) |
| Switch separation | 3 |
| Mass (kg) | 59 |
*This product is a replacement of TPR Ultra Carbon UC601 which has been discontinued by the manufacturer.
