| Electric motor rated output kW｛PS｝ | 5.9{7.5}（3.7＋2.2） |
|---|---|

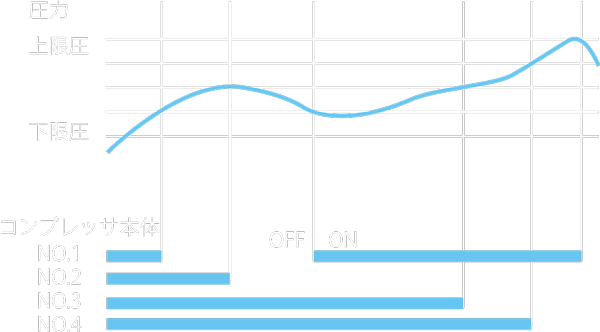

| Control system | Multi Stage Automatic start and stop［Pressure sensor detection］ |
| Control pressure MPa（kgf/cm2） | 0.65〜0.8 |
| Output air volume L/min | 675 |
| Air tank capacity L | 120(SAT-120C-140) |
| Air outtake B | Rc3/4 |
| External dimensions (W x D x H)mm |
680×985×1195 |
| Mass kg | 310 |
| Noise level
(1.5m in front) dB(A) |
52 |
| Voltage V | Three-phase 200 |
| Product name [ordering code] | Regular price | Member price | Qty |
|---|---|---|---|
|

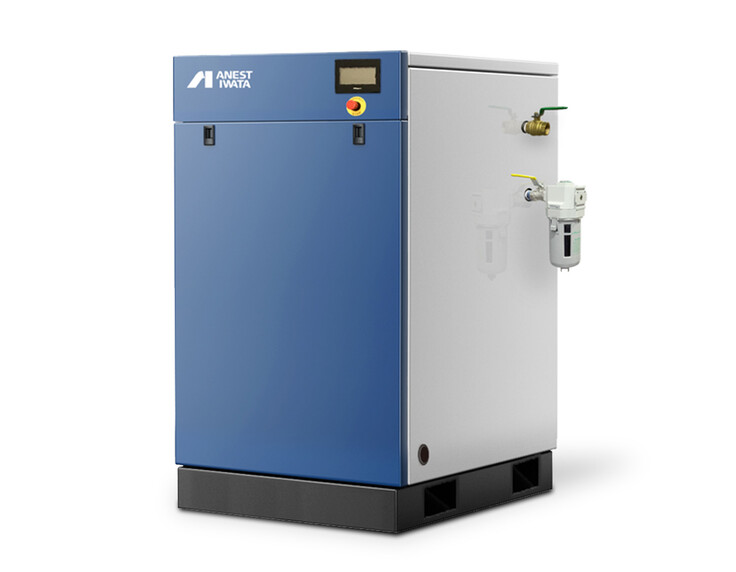

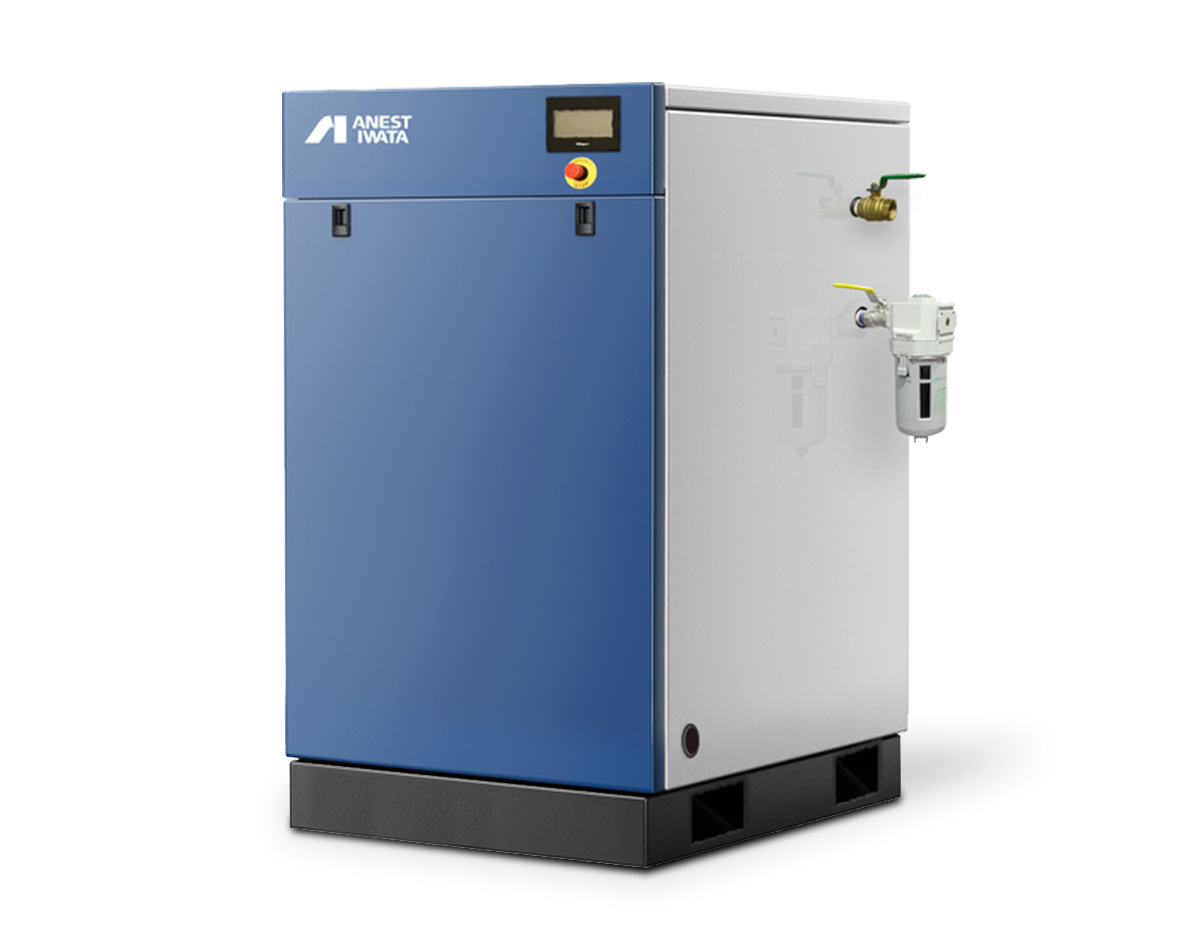

ANEST IWATA Oil-Free Scroll Compressor SLP-55EGD M5 [03396-01] |
|||

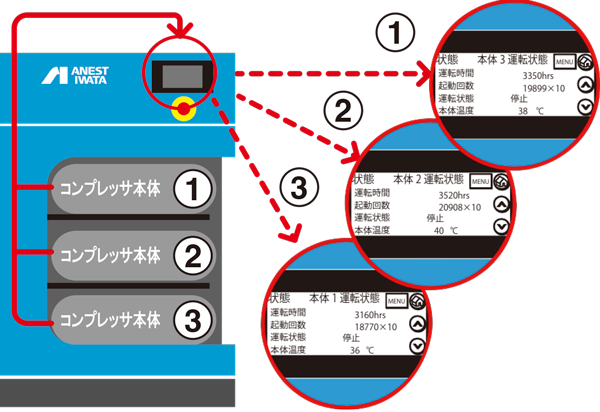

By adopting a new substrate and LCD touch panel, it is now possible to manage the compressor in more detail and optimally.

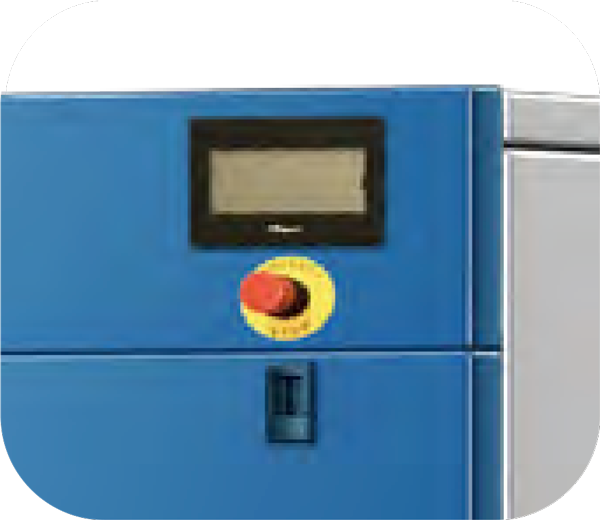

By equipping the machine with an emergency stop switch as standard, it has been designed with greater emphasis on customer safety. Equipped with an emergency stop switch as standard (5.5 to 15 kW machines)

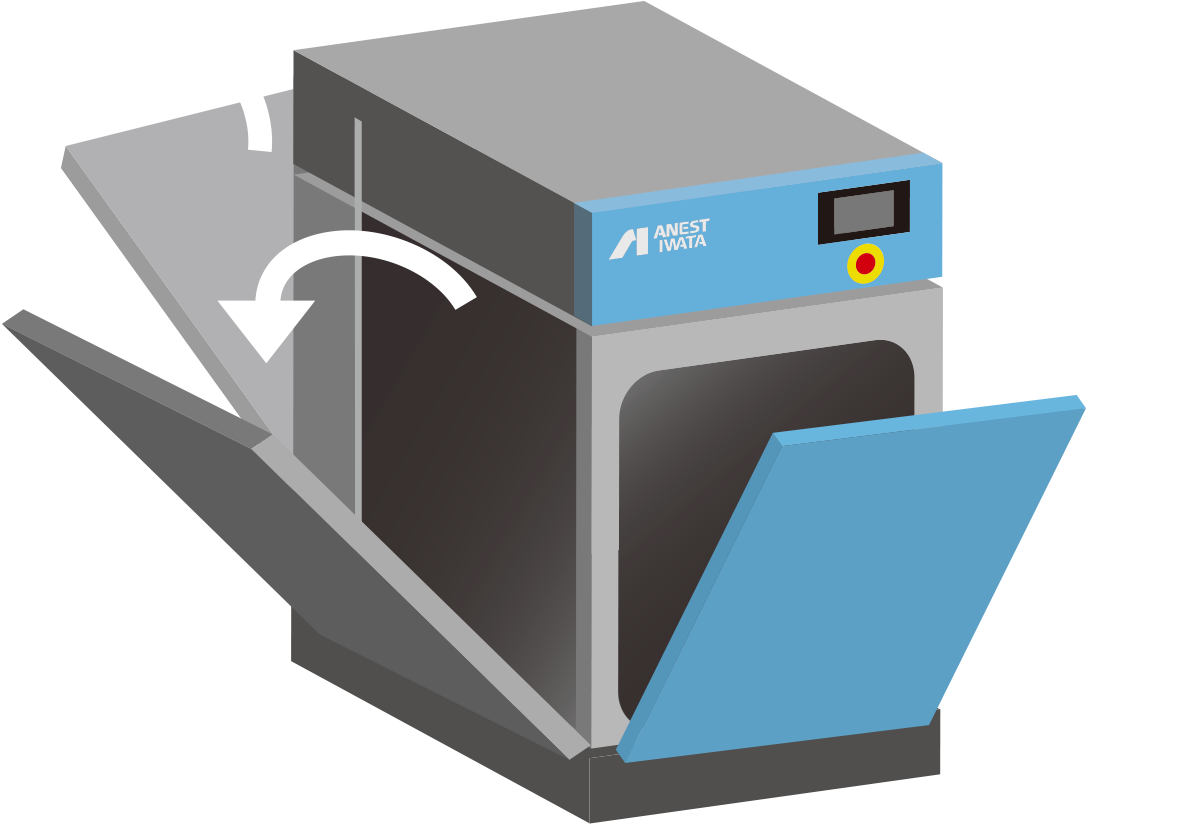

By adopting a panel structure that can be opened on three sides without using tools, it has been designed for customers to easily maintain.

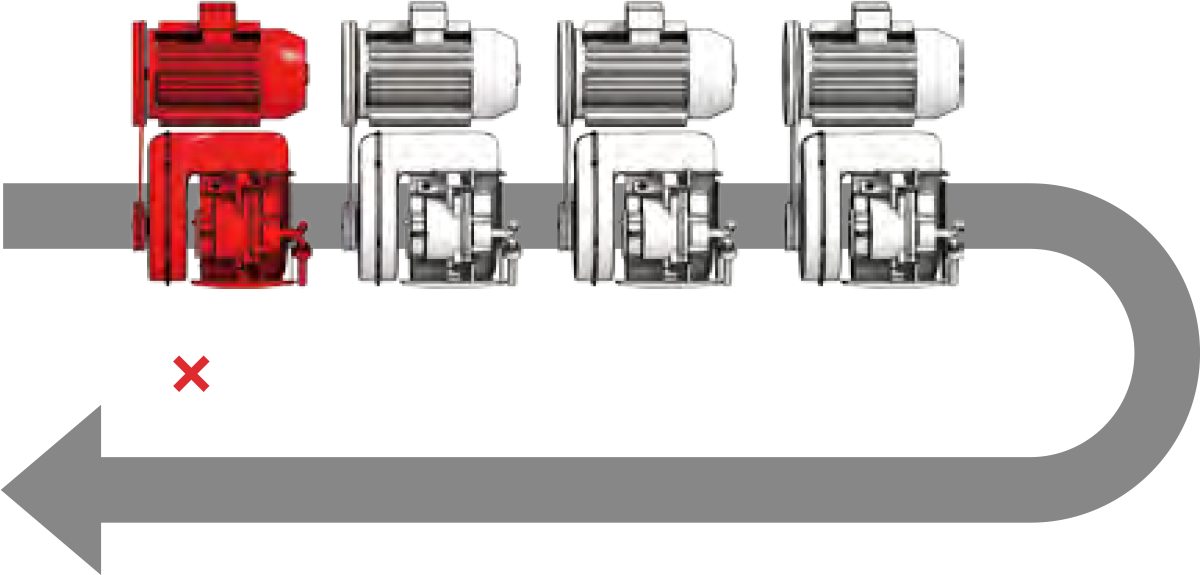

In the unlikely event of a failure, the multiple compressor bodies installed will automatically start backup operation. It avoids the risk of a zero compressed air supply.
Assuming unexpected stoppage troubles caused by power outages due to bad weather, etc., an automatic power failure recovery function is installed as standard. It can also handle momentary power failures, contributing to stable factory operations. It can be activated simply by operating the touch panel.
NOTE: In consideration of safety, this function is disabled when shipped from the factory.
A noise level of 52 to 58 dB is achieved, which is as quiet as a general office.
