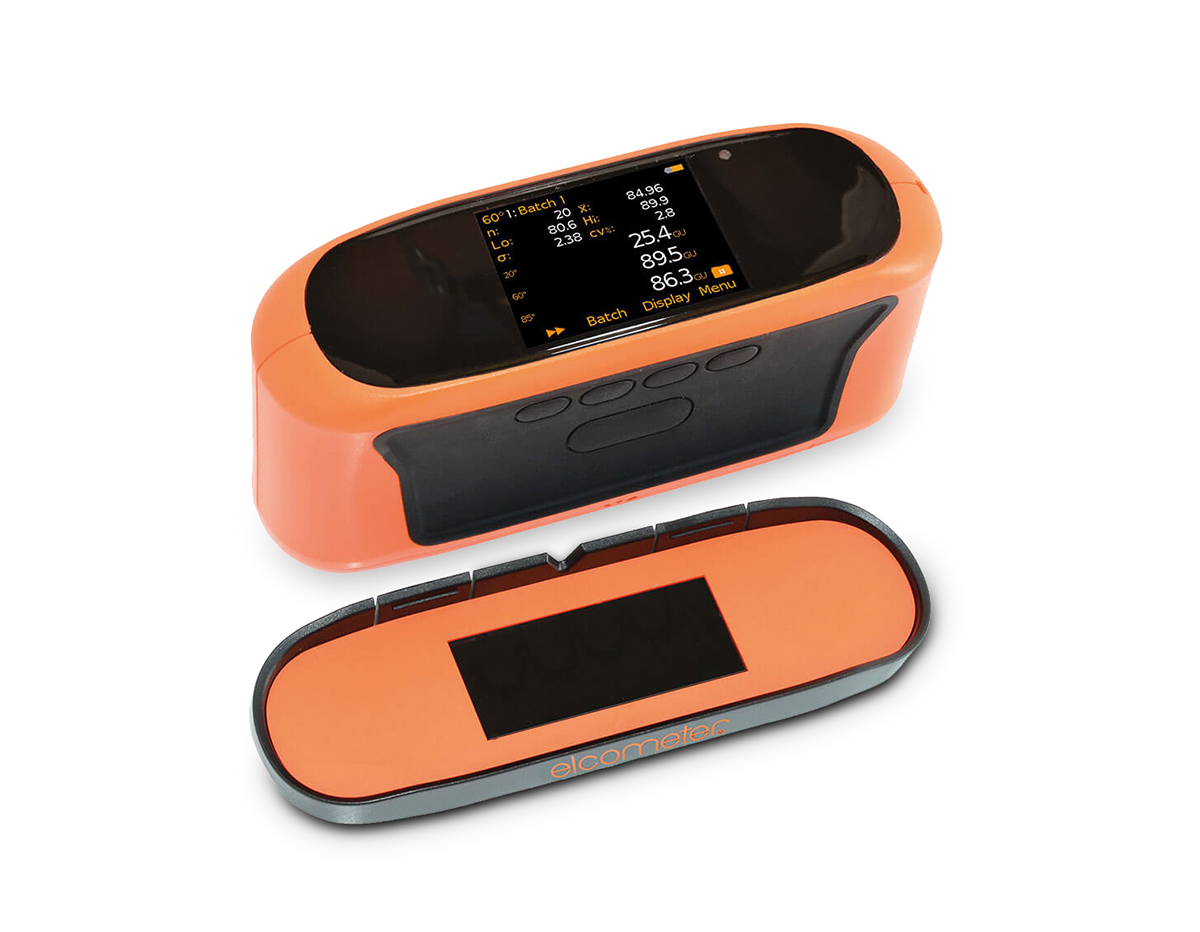

Elcometer 480 MODEL T Glossmeter

Elcometer 480 MODEL T Glossmeter
Display 2.4-inch (6 cm) QVGA color TFT display, 320 x 240 pixels
Power Supply USB / 2 x AA batteries
Operating Temperature -10～50°C (14～122°F)
Relative Humidity 0～85%
Dimensions 68 x 155 x 50mm
Weight 534g (Including batteries)
Contents Main unit, Calibration standard plate, Calibration certificates for the glossmeter and calibration standard plate, 2 AA batteries, Wrist strap, User manual, Plastic storage case, ElcoMaster®software (Model T only), USB cable (Model T only)
Learn more about this product.

Order Here

Product name [ordering code] Regular price Member price Qty
Elcometer 480 MODEL T Glossmeter Triple（20°/60°/85°）
[03511-04]

Login to view price or purchase
Elcometer 480 MODEL T Glossmeter Dual（20°/60°）
[03511-03]

Login to view price or purchase
Elcometer 480 MODEL T Glossmeter Single（20°）
[03511-02]

Login to view price or purchase

Product Description

The Elcometer 480 Model T can quickly and accurately measure and record gloss, reflectance (%), and haze values on a wide range of materials, including not only painted surfaces but also plastics and metals. It offers three measurement angles: Single, Dual, and Triple. The triple angle model, in particular, provides the most accurate measurements from three simultaneous angles. It also features excellent functionality with USB and Bluetooth connectivity for PC and smartphone integration.

Three Measurement Modes

Standard Mode

Place the Elcometer on the measurement spot and press the measurement button.

Auto Measurement Mode

Move the Elcometer over the measurement area, and the gloss level will be automatically read at the specified speed (10-180 readings per minute), with the measurement values saved in memory.

Scan Mode

This mode allows you to quantify the uniformity of a surface. By moving the Elcometer over the measurement area, it scans at a rate of 10 times per second. After scanning, the gloss measurement values are displayed as the average, maximum, and minimum values, and saved.

Memory and Batch Function

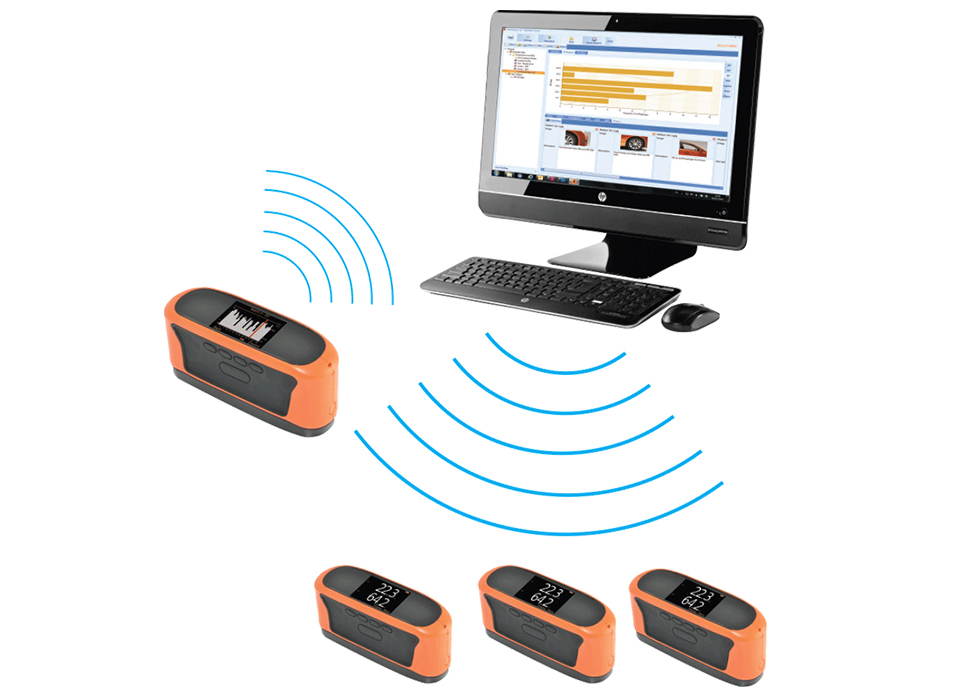

The built-in memory can store up to 40,000 data points across 2,500 batches. Measurement data can be transferred to a PC or mobile device via USB or Bluetooth®, and the results can be easily generated using the ElcoMaster® software.

ElcoMaster® software

The following data can be sent from the Elcometer 480 Model T to ElcoMaster®:
  • Measured gloss (GU)
  • Haze value (HU)
  • Reflectance (%)
  • Measurement date and time
  • Reference values
  • Batch information and statistical values
  • Calibration information
Click here to check Simple Functionality Model Elcometer 480 Model B
