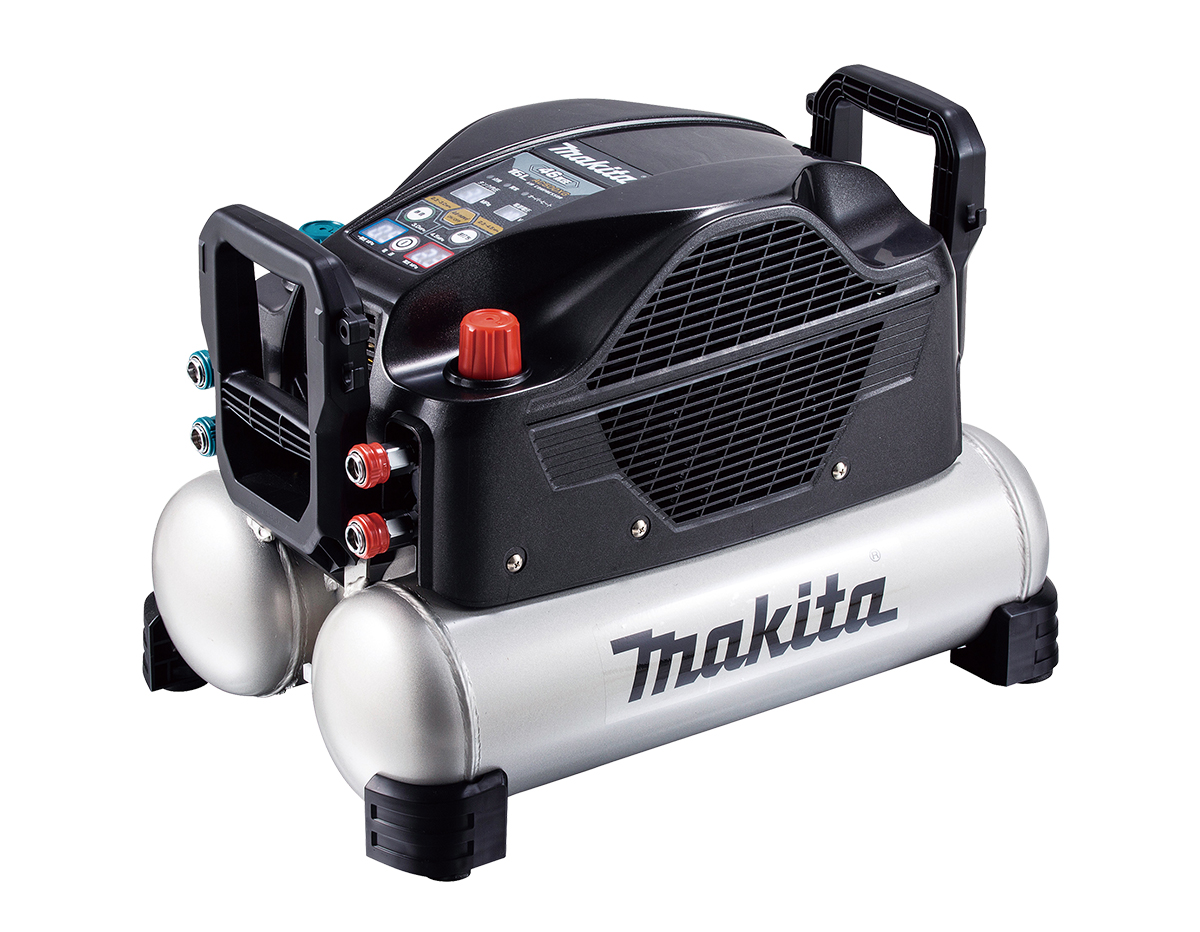

Makita Air Compressor AC500XGB

Makita Air Compressor AC500XGB
Tank capacity L 16
Maximum pressure (inside tank)
MPa（kgf/cm2）		 4.5
（46）
Pressure release valve control adjustment range
MPa（kgf/cm2）		 Normal pressure：
0-0.88（0-9）
High pressure：
0-2.45（0-25）
Output air volume L/min 98（At normal pressure/ 0.69MPa）
83（At high pressure/ 2.5MPa時）
Operating method Pressure sensor type
Air outtake（Normal pressure） 2
Air outtake（High pressure） 2
Speed（min-1）［rotations per minute］ Maximum 2,500
（Silent mode：1,800max.）
Noise level db(dB(A)) 62-59
Power V Single-phase 100
Electric current A 15（Silent mode：12）
Output kW 1.2
Machine dimensions（Length×Width×Total height）mm 539×367×373
Mass kg 18
Learn more about this product.

Order Here

Product name [ordering code] Regular price Member price Qty
makita Air Compressor AC500XGB
[03574---]

Login to view price or purchase

Product Description

Equipped with "Air Navi" mode
High-efficiency operation with excellent durability and low noise
Automatically adjusts tank pressure according to the type of work


●Supports Various Professional Needs

Automatically adjusts tank pressure according to the type of work with "Air Navi."
Combines efficient operation with high durability.

●Equipped with "Air Navi" Mode; Offers two modes, "Fast Operation" and "Low Noise," tailored to different work scenarios.

Achieves approximately 20% reduction in operating time compared to when Air Navi is off (based on tests using AC500XG in Fast Operation mode with Air Navi ON and AN636H). Achieves "high durability and reduced noise during operation." Lowers power consumption, minimizing circuit breaker trips.

●Excellent Nailing Performance

Reliable under heavy loads and unstable power sources.

●"Robust Design" for Harsh Work Environments

■Improved filter performance.
■Optimized compression efficiency.
■Anti-vibration floating structure.

●"Low Noise" During Operation and Exhaust

Ensures comfortable work in noise-sensitive environments like residential areas or renovation sites.

●New Drain Discharge Structure

Includes a filter at the discharge port.
Reduces exhaust noise and prevents water or dust from scattering on the floor.

●High-Visibility, Easy-to-Use Digital Display

●Ergonomic Pressure Adjustment Knob

●16-liter "Large" tank capacity

●"Makita’s Trusted" 2-Year Warranty

NOTE: Covers failures occurring under normal use as outlined in the instruction manual during the warranty period, with free repairs provided as specified in the warranty document.
